Turbine flow meter รุ่น DH500 แบบหน้าแปลน

Overview
TU500 turbine flow transducer adapts to measure the liquid rate and total flowrate of low viscosity. It can be widely used in the fields ofPetrol, Chemical industry, Metallurgy Scientific research for measuring or control. Several output and display methods can be selected

Pparatus Selection

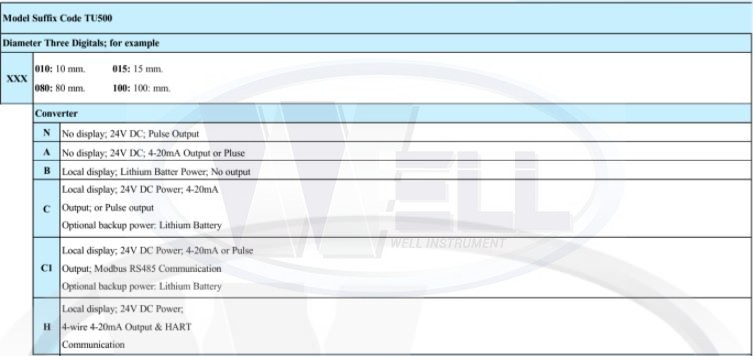

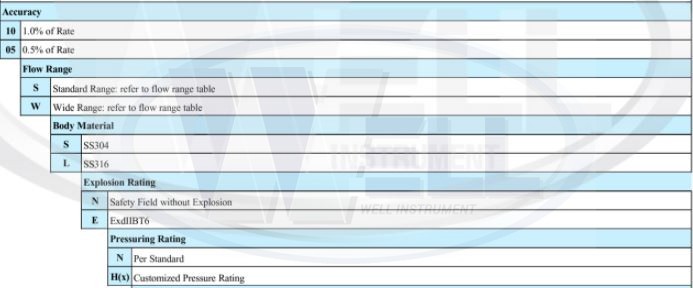

Model Selection Guidance for Liquid Turbine Flowmeter

Model Code : TU500 050C10SSNN A1 T1
Explanation – Diameter : 50 mm , Converter : 24V DC Power Supply, 4-20 mA Output, Local Display , Accuracy : 1.0% , Flow range : 4-40 m3/h , Body Material : SS304 , No Explosion ;

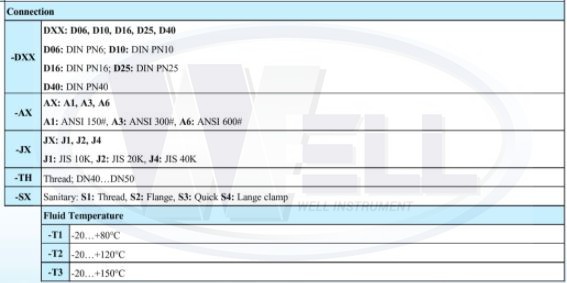

Connection : ANSI 150 Flange , Fluid Temperature : -20…+80 °C
