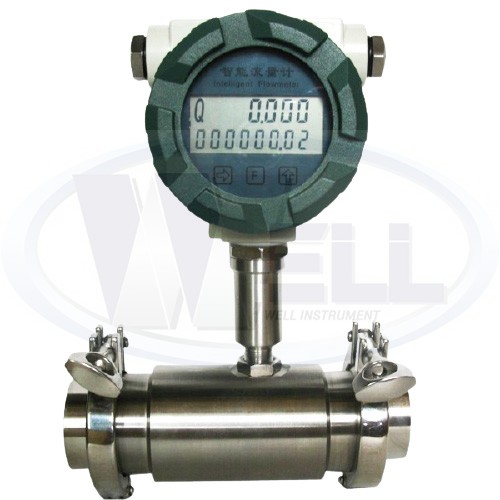

Turbine flow meter รุ่น DH500 สำหรับงาน Sanitary

Overview for DH500

DH500 turbine flow transducer adapts to measure the liquid rate and total flowrate
of low viscosity. It can be widely used in the fields ofPetrol, Chemical industry,
Metallurgy Scientific research for measuring or control. Several output and display
methods can be selected

Pparatus Selection

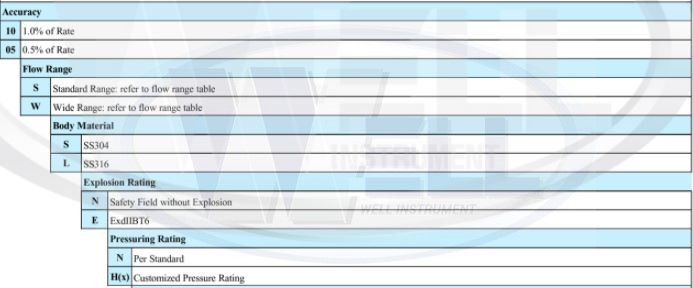

Model Selection Guidance for Liquid Turbine Flowmeter

• Model Code : TU500 025C05SLNN S4 T3
• Explanation – Diameter : 25 mm , Converter : converter 24VDC power 4-20 mA bacup power lithium battery , Accuracy : 0.5% ,
• Flow range : 2.5-16 m3/h , Body Material : SS304 , No Explosion;
• Connection : Lange clamp , Fluid Temperature : -20…+150 °C
