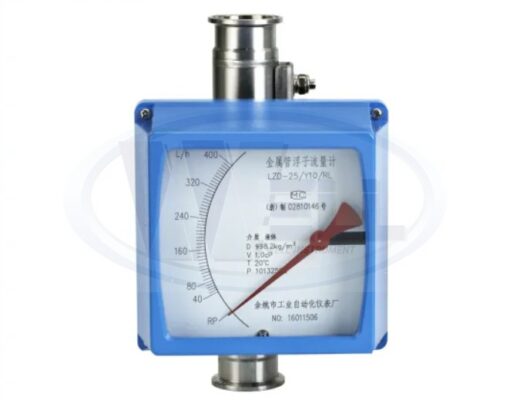

Variable area flow meter รุ่น LZ แบบ Tri-clamp งาน Sanitary

Overview for variable area flow meter รุ่น LZ

LZ Seires variable-area flowmeters with metallic measuring tube has the characteristics of simplicity, reliability, wide application field,
high precision and easy installation. Compared variable-area flowmeter with glass tube flow meter, this series has the characteristics of
high pressure safe, high temperature safe, easy reading etc. It is widely applicable in petrol, chemical, power supply, pharmacy, food,
water treatment industry etc.

Technical Parameter





























Material Part No.
1 Flange Connection
2 Guider
3 Float
4 Measuring Tube
5 Tube Body
6 Stopper
7 Spring Collar
8 Indicator







LZ-Outline and installing demension (Tri-Clamp Connection)

Y10 Tri-Clamp Connection
